| Quantity: | |
|---|---|
Diameter (mm) | Arbor diameter (mm) | Thickness (mm) | Weight (g) |
230 | 25.4 | 1.6 | 530 |
250 | 25.4 | 1.8 | 590 |
1、Electroplated Diamond Layer
Diamond particles are firmly bonded to the surface via electroplating technology, delivering exceptional hardness and wear resistance to extend the blade's service life.
Uniform distribution of diamond particles ensures low vibration and noise during cutting, minimizing the risk of material tearing.
2、Base Material
Typically made of high-strength steel or alloy steel, combining toughness and rigidity to withstand high-speed rotation.

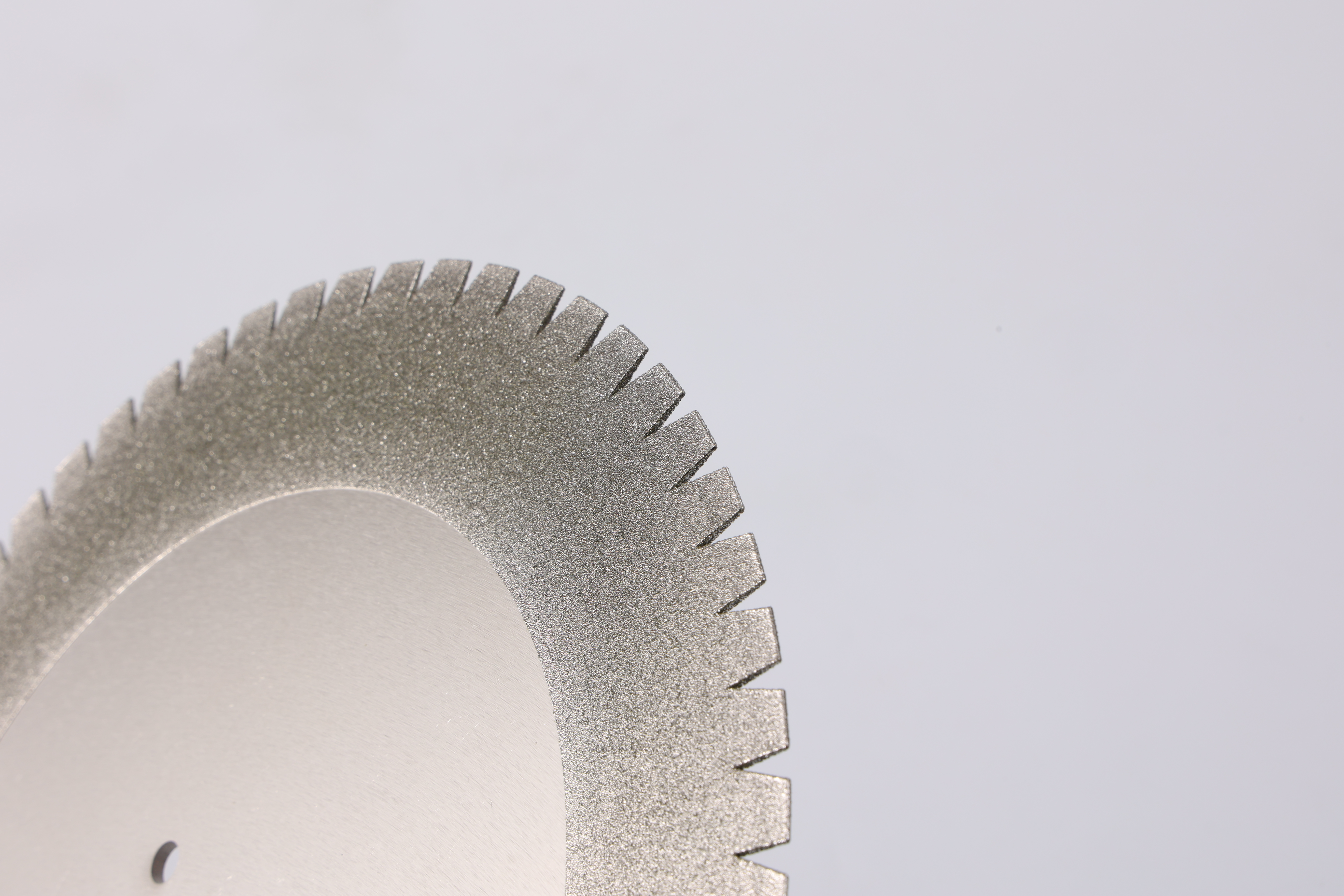

3、Tooth Design
Teeth are engineered with specially optimized geometric profiles (e.g., continuous teeth, turbine teeth) to reduce cutting resistance and prevent material adhesion, specifically tailored for rubber's viscoelastic properties.
Tooth spacing and height balance chip removal efficiency and cutting precision, ensuring smooth, burr-free edges on positioning holes.
4、Special for cutting rubber

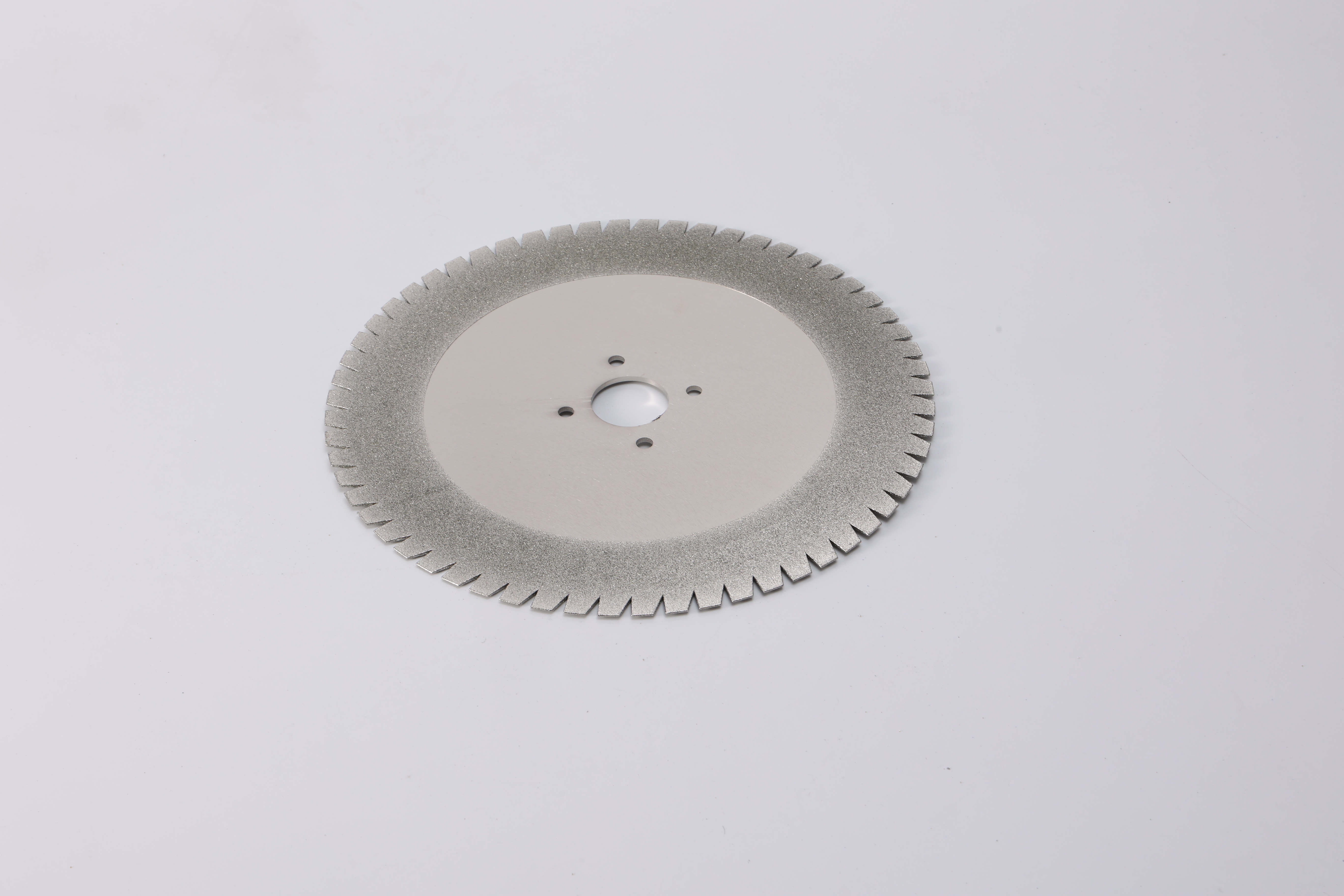

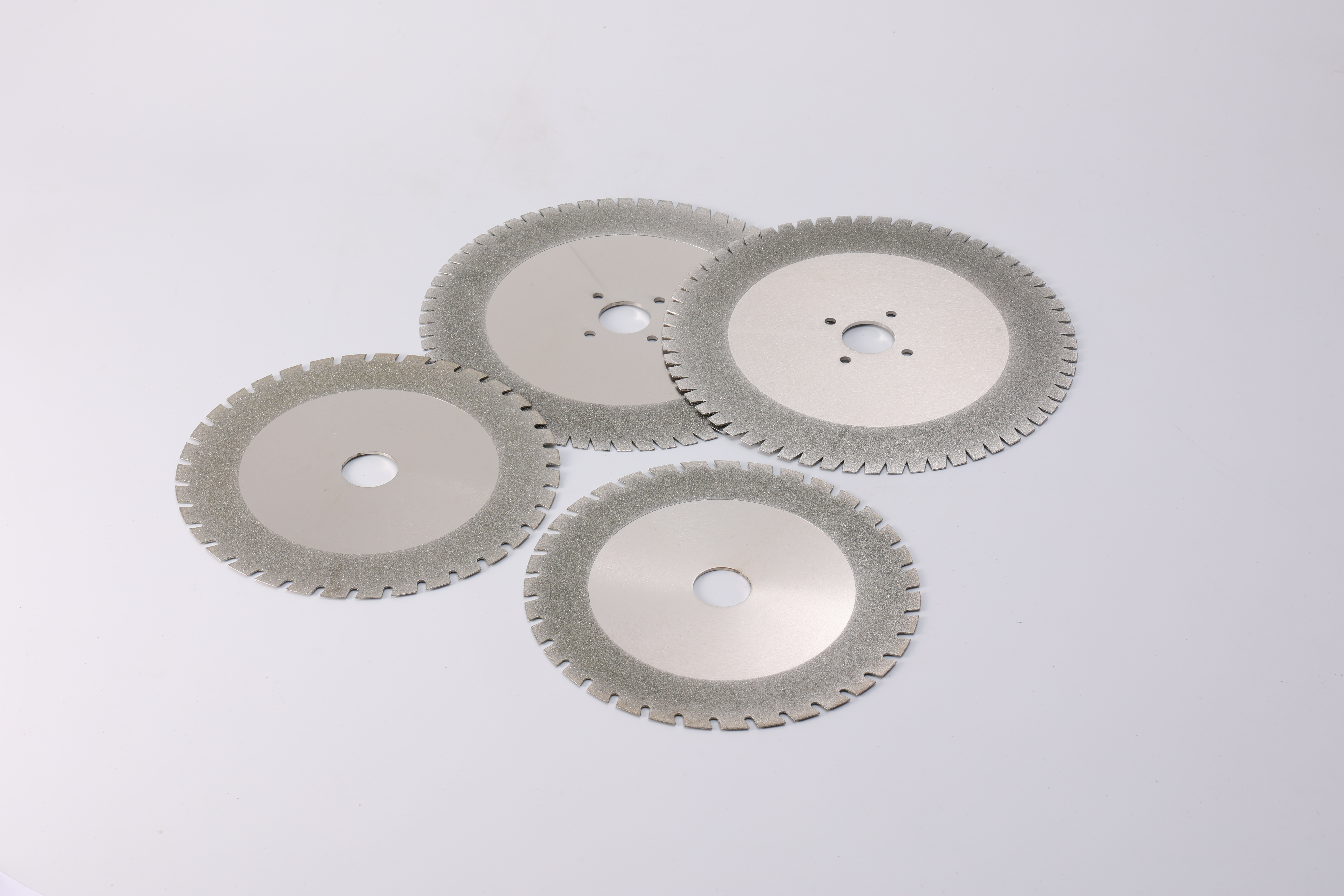

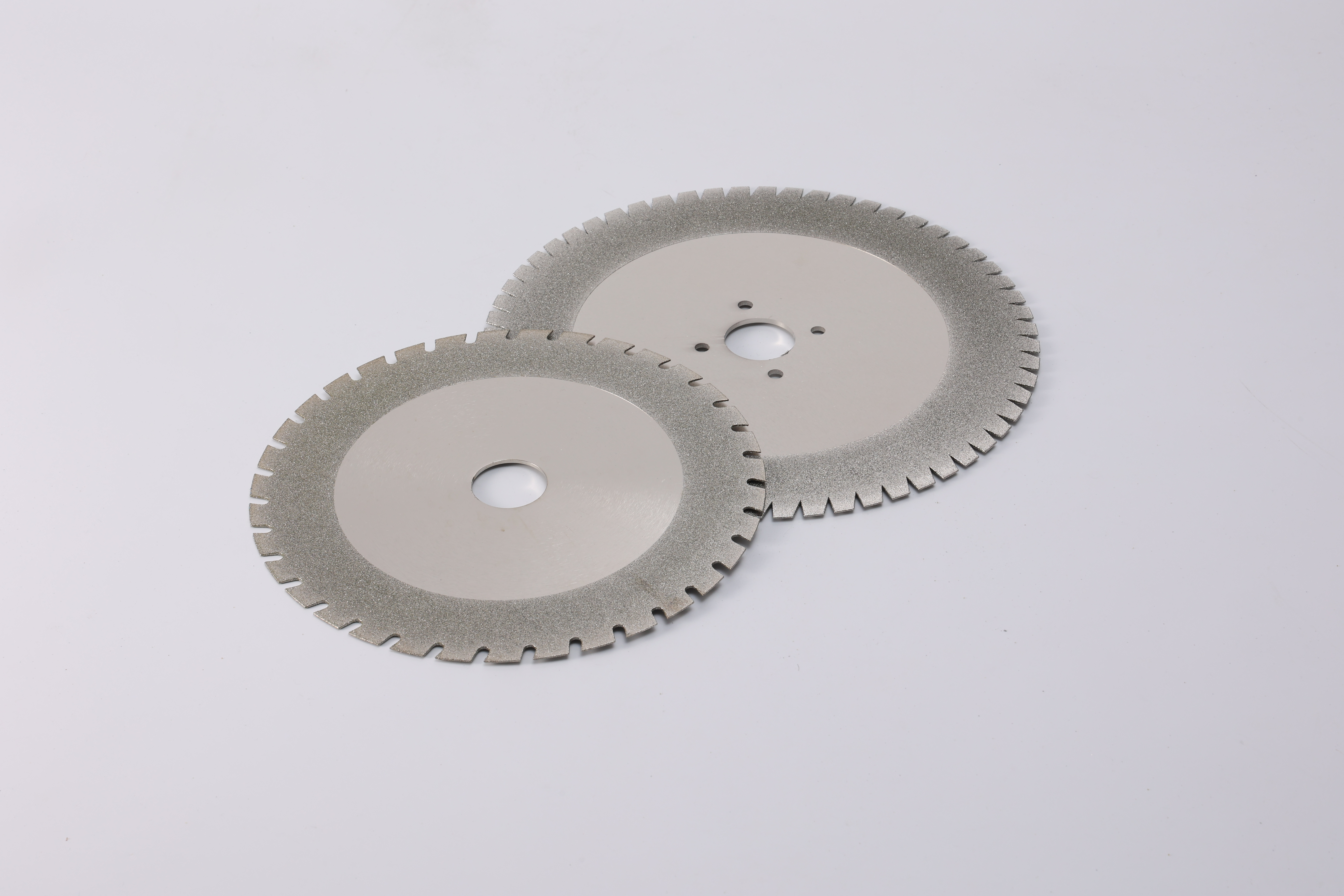

Detailed Images
Diameter (mm) | Arbor diameter (mm) | Thickness (mm) | Weight (g) |
230 | 25.4 | 1.6 | 530 |
250 | 25.4 | 1.8 | 590 |
1、Electroplated Diamond Layer
Diamond particles are firmly bonded to the surface via electroplating technology, delivering exceptional hardness and wear resistance to extend the blade's service life.
Uniform distribution of diamond particles ensures low vibration and noise during cutting, minimizing the risk of material tearing.
2、Base Material
Typically made of high-strength steel or alloy steel, combining toughness and rigidity to withstand high-speed rotation.
3、Tooth Design
Teeth are engineered with specially optimized geometric profiles (e.g., continuous teeth, turbine teeth) to reduce cutting resistance and prevent material adhesion, specifically tailored for rubber's viscoelastic properties.
Tooth spacing and height balance chip removal efficiency and cutting precision, ensuring smooth, burr-free edges on positioning holes.
4、Special for cutting rubber
Detailed Images
