| Quantity: | |
|---|---|
Specifications
Diameter (mm) | Inner diameter (mm) | Thickness (mm) | Weight (g) |
100 | 22.23 | 2.5 | 74 |
115 | 22.23 | 2.4 | 89 |
125 | 22.23 | 2.4 | 95 |
150 | 22.23 | 2.6 | 245 |
180 | 22.23 | 2.8 | 292 |
230 | 2.8 | 2.8 | 400 |
Various specification and size available upon client's request.
Features
Multi-Material Compatibility: Designed for cutting metals (iron, stainless steel, alloy cast iron) and structural profiles (angle iron, steel pipes), balancing the cutting demands of both hard metals and ductile materials.
Brazed Technology: Utilizes high-temperature brazing to fix diamond or carbide tips to the blade body, ensuring high bond strength, impact resistance, and extended service life.
Quick Installation: Standard center hole (e.g., 22.23mm) and locking mechanisms simplify installation procedures.
High-Speed Compatibility: Reinforced blade body and dynamic balancing design ensure stability and safety when operating at high speeds.
Heat Dissipation & Weight Reduction: Evenly distributed holes on the disc surface effectively reduce frictional heat during cutting, minimize material thermal deformation, lighten the blade weight, and enhance angle grinder maneuverability.
Chip Removal Optimization: The holes facilitate rapid ejection of metal debris, preventing kerf clogging and maintaining high cutting efficiency.

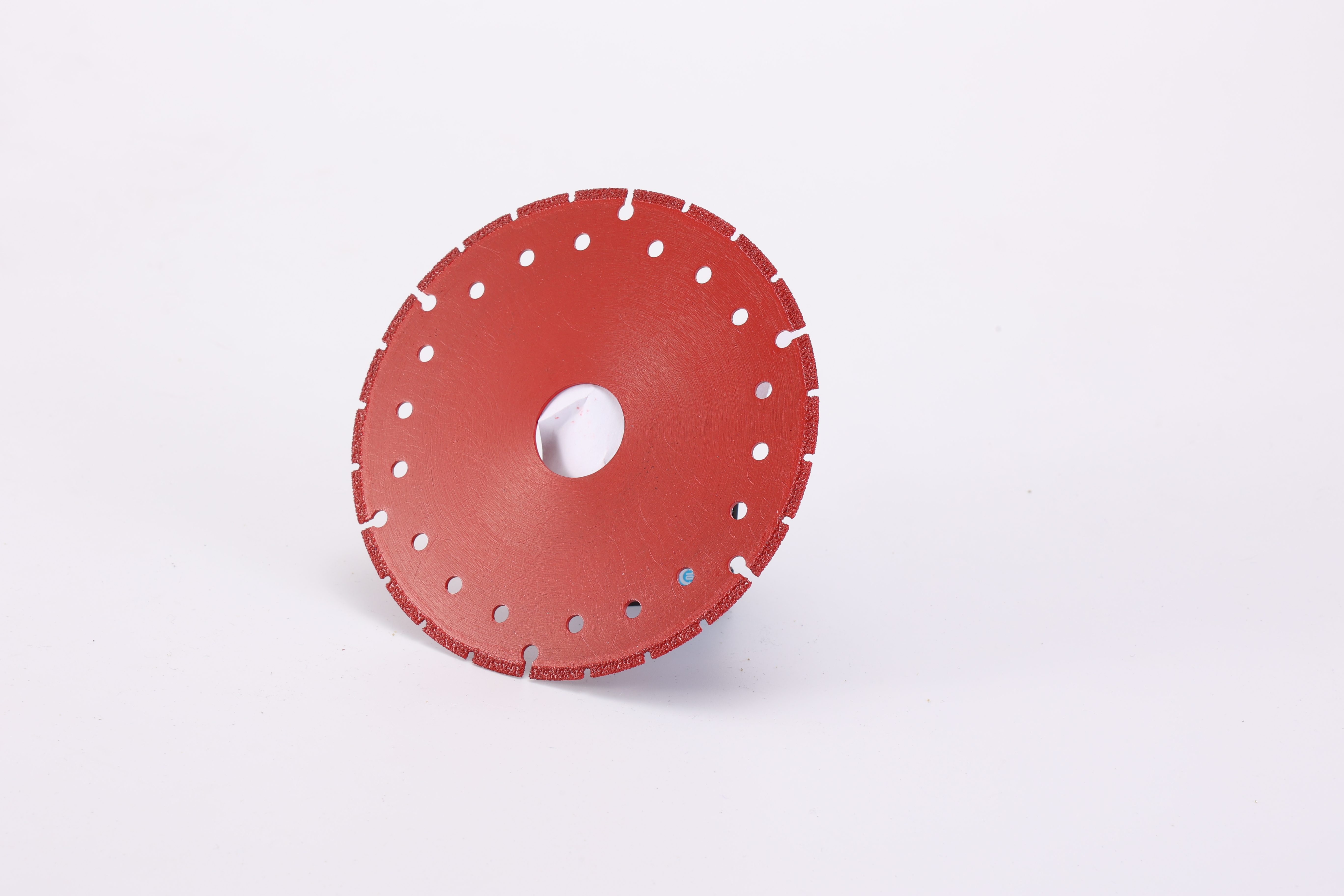

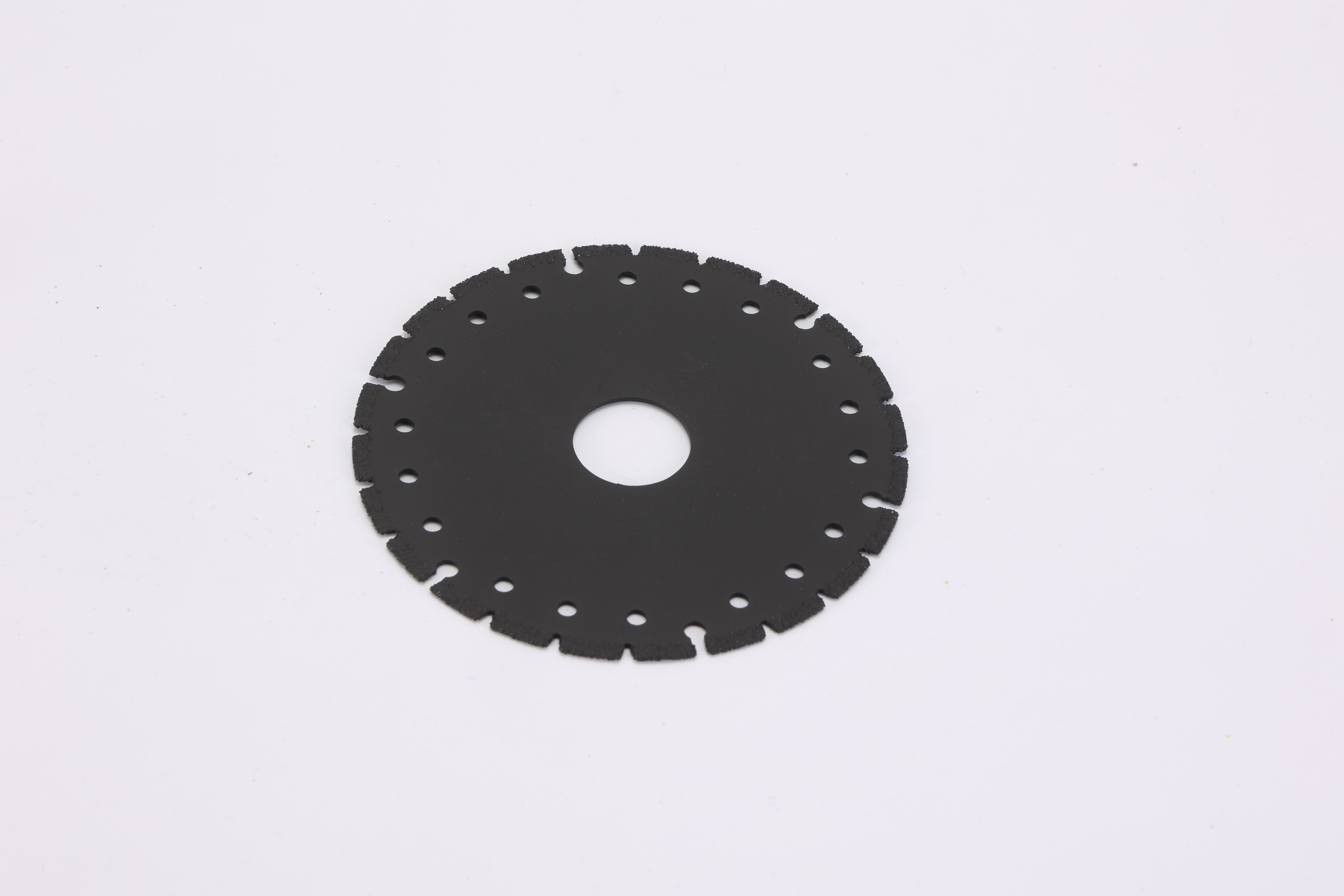

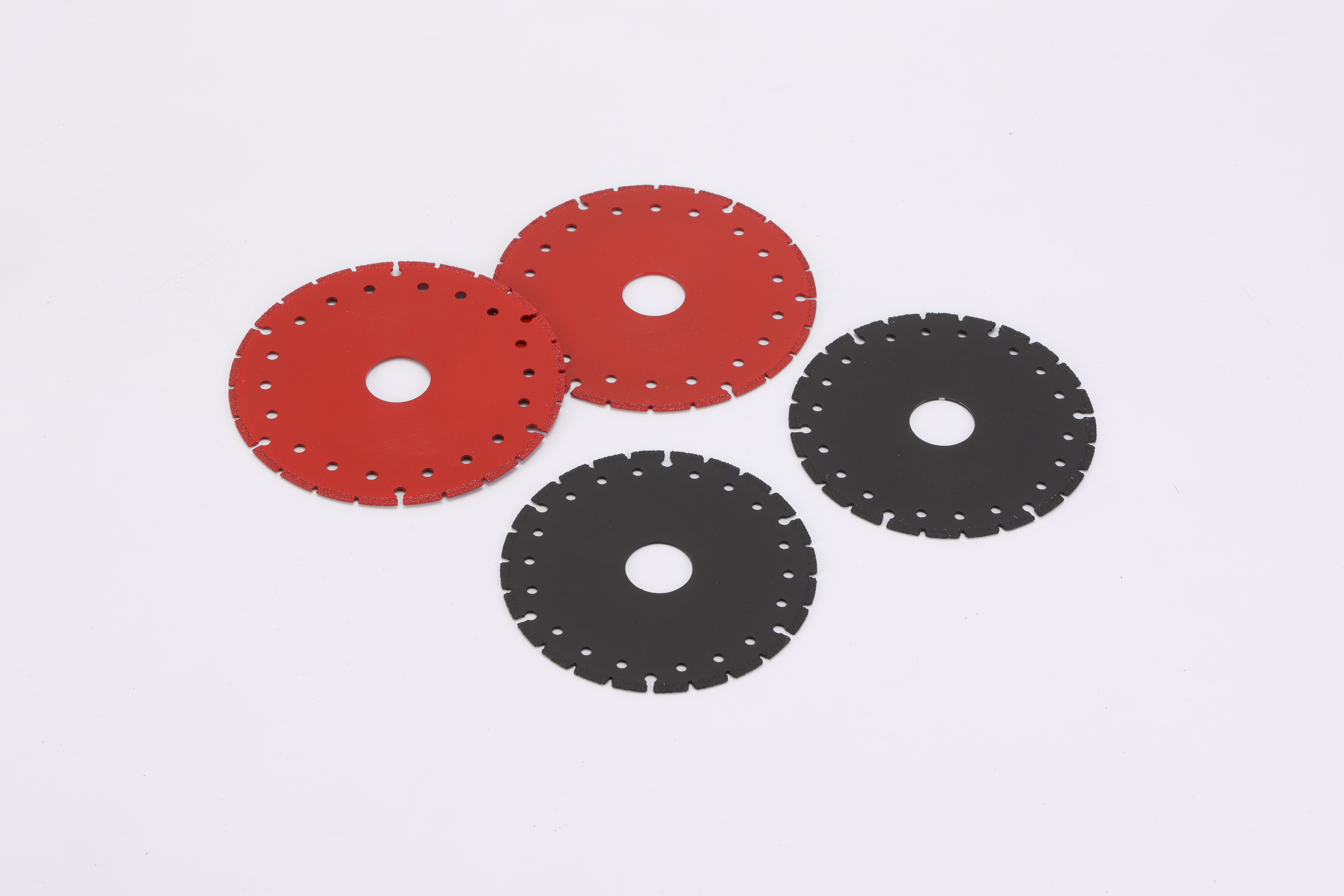

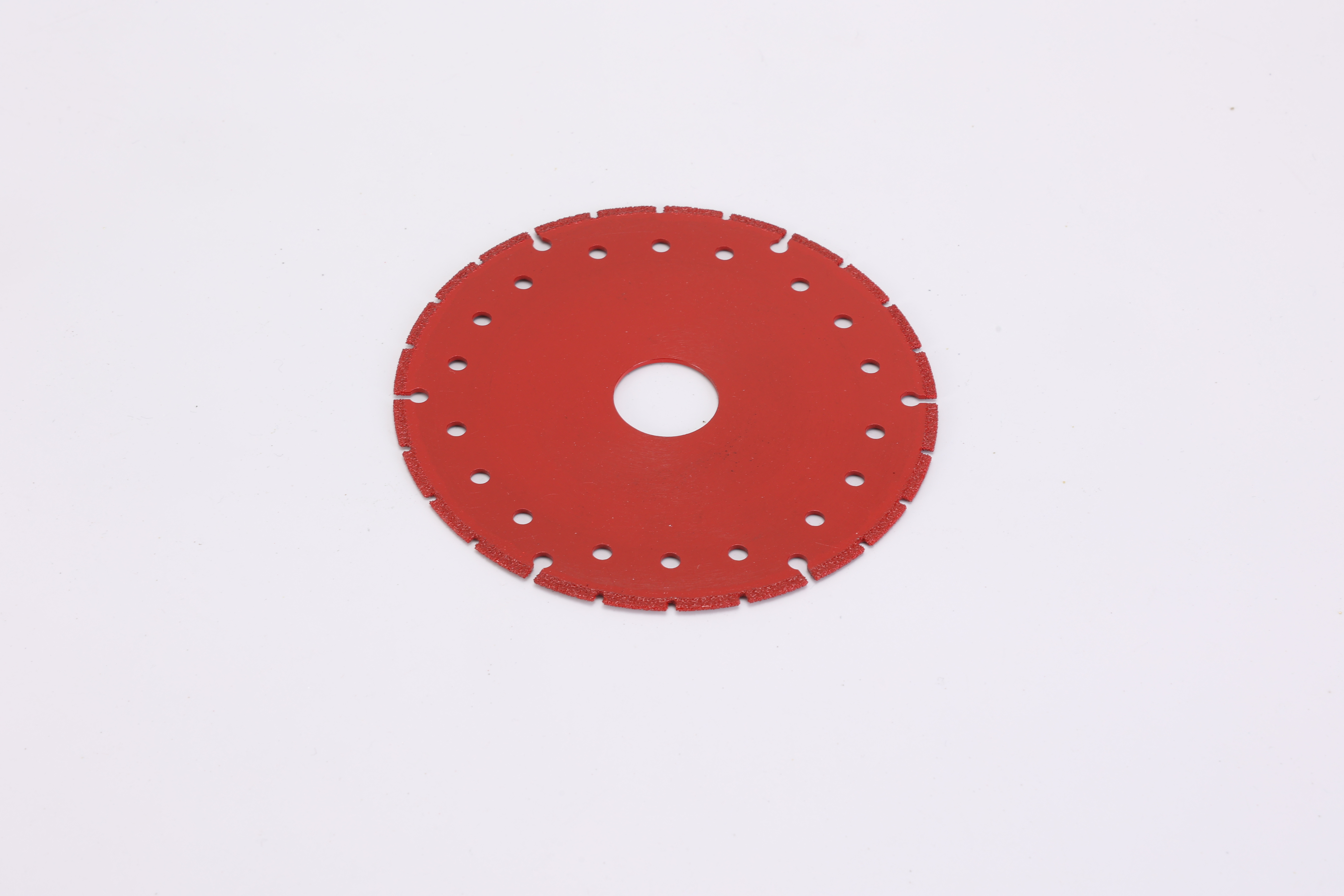

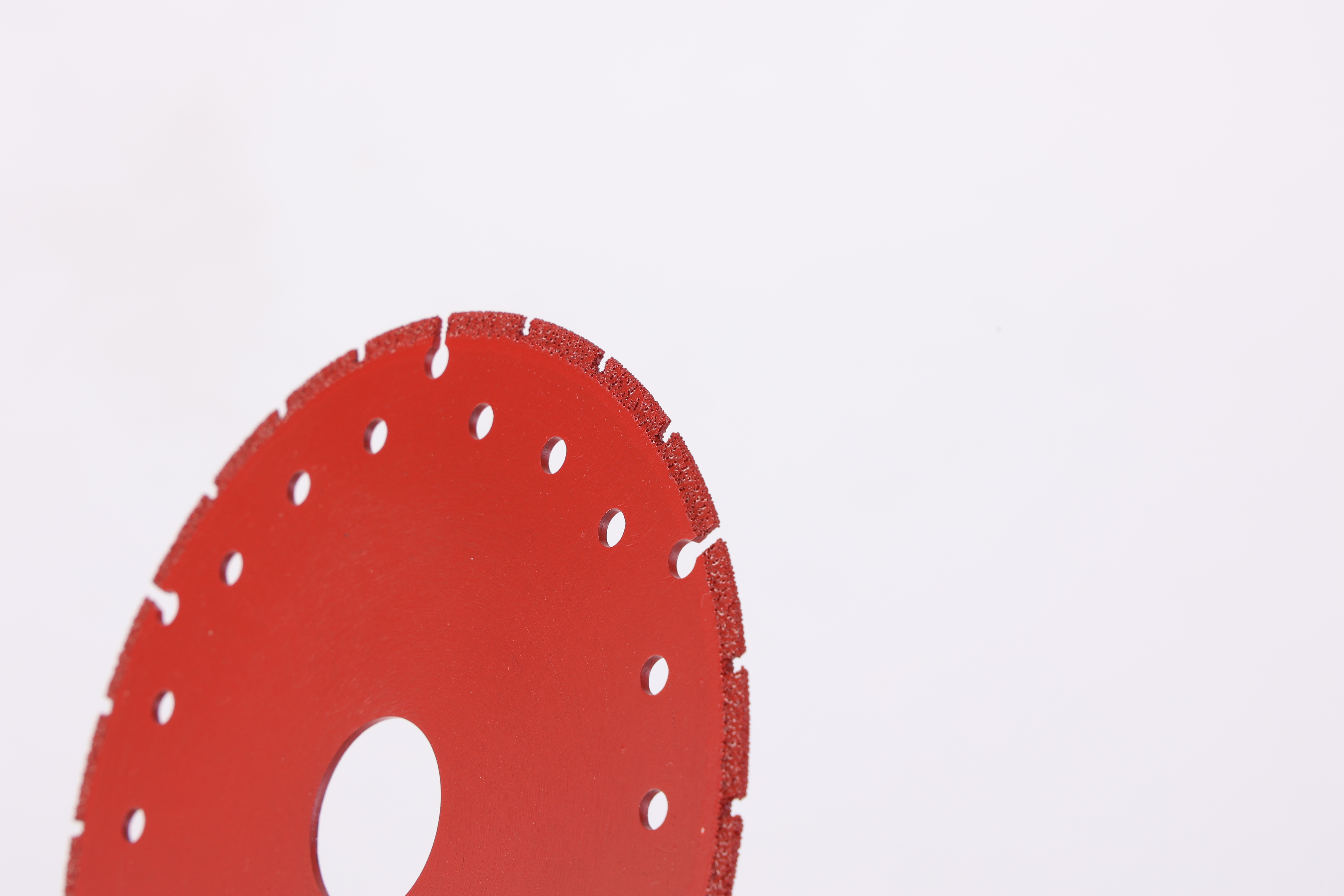

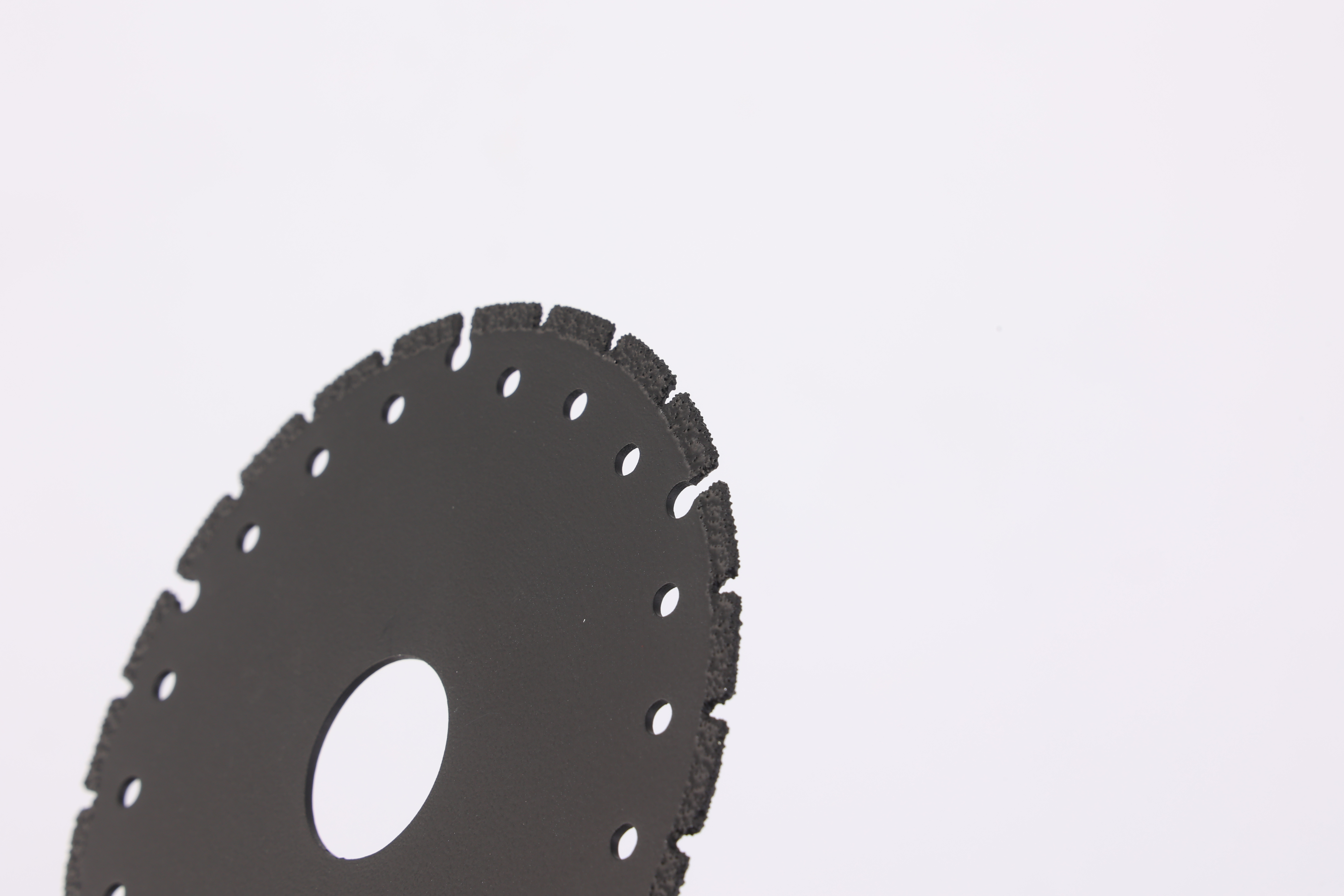

Detailed Images
Specifications
Diameter (mm) | Inner diameter (mm) | Thickness (mm) | Weight (g) |
100 | 22.23 | 2.5 | 74 |
115 | 22.23 | 2.4 | 89 |
125 | 22.23 | 2.4 | 95 |
150 | 22.23 | 2.6 | 245 |
180 | 22.23 | 2.8 | 292 |
230 | 2.8 | 2.8 | 400 |
Various specification and size available upon client's request.
Features
Multi-Material Compatibility: Designed for cutting metals (iron, stainless steel, alloy cast iron) and structural profiles (angle iron, steel pipes), balancing the cutting demands of both hard metals and ductile materials.
Brazed Technology: Utilizes high-temperature brazing to fix diamond or carbide tips to the blade body, ensuring high bond strength, impact resistance, and extended service life.
Quick Installation: Standard center hole (e.g., 22.23mm) and locking mechanisms simplify installation procedures.
High-Speed Compatibility: Reinforced blade body and dynamic balancing design ensure stability and safety when operating at high speeds.
Heat Dissipation & Weight Reduction: Evenly distributed holes on the disc surface effectively reduce frictional heat during cutting, minimize material thermal deformation, lighten the blade weight, and enhance angle grinder maneuverability.
Chip Removal Optimization: The holes facilitate rapid ejection of metal debris, preventing kerf clogging and maintaining high cutting efficiency.
Detailed Images
